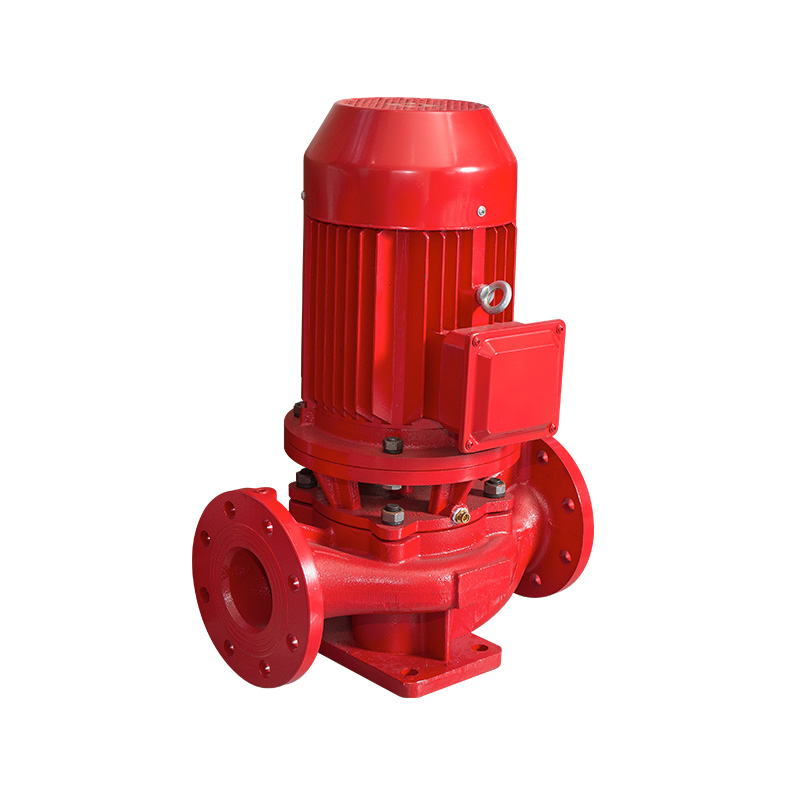

Vertical pipeline pump Suppliers

Home / Products / Pipeline Pump / Vertical pipeline pump

Features:

1. Motors, castings, etc. are self-manufactured, the product cost-effective and super high

2. High reliability, long time stable operation.

3. Machine seals and bearings are of famous brands at home and abroad, with guaranteed quality.

4. Complete models to meet the requirements of large flow and high head working conditions.

5. Stable operation, low noise and vibration.

6. Materials can be selected from ordinary materials and 304, 316 stainless steel and so on.

7. High temperature resistance, hot and cold water universal

Scope of application

Model	Applicable medium	Applicable temperature	Scope of application
ISG type vertical centrifugal pump	Conveying clear water and other liquids with physical properties similar to clear water.	Medium temperature below 80℃	Suitable for industrial and urban water supply and drainage, high-rise building water supply, garden sprinkler irrigation, fire-fighting pressure, long-distance water transmission, heating, bathroom cold and warm water circulation pressure and equipment supporting and so on.
ISGR type vertical hot water pump	High temperature hot water for industrial boilers	Medium temperature below 100℃	Suitable for civil and enterprise and public institutions with heating systems, building housing heating and hot water pressurisation, circulation, transport and other production process heat system, such as: power stations, thermal power stations, waste heat use, metallurgy, chemical industry, textile, wood processing, paper and so on.
ISGH type vertical chemical pump	Conveying liquids that do not contain solid particles and are corrosive and have a viscosity similar to water.	Medium temperature -20℃~120	Apply to the light textile, petroleum, chemical, gold treatment, mining, pharmaceutical and synthetic fibre and other sectors
ISGB type vertical explosion-proof oil pump	No corrosive, flammable or explosive liquids	Medium temperature -20℃~100℃	Applicable to petroleum, textile, chemical, machinery and other industries, media density <1000kg/m³
ISGHB type vertical explosion-proof chemical pump	Conveying corrosive liquids that do not contain solid particles and whose viscosity is similar to that of water and which are flammable and explosive.	Medium temperature -20℃~120	Apply to the light textile, petroleum, chemical, gold treatment, mining, pharmaceutical and synthetic fibre and other sectors

Operating conditions:

1. The high working pressure of pump system is ≤1.6MPa, i.e. pump suction pressure + pump head ≤1.6MP, please specify the system working pressure when ordering. When the inlet pressure>0.4MPa, or pump system working pressure>1.6MPa, should be put forward in the order, so that in the manufacture of the pump, the overflow part and the joint part of the cast steel material.

2. Applicable medium: the medium of clean water pump should be non-corrosive liquid, medium solid insoluble matter, the volume of which does not exceed 0.1% of the unit volume, particle size <0.2mm, such as medium with fine particles, please specify when ordering.

3. The ambient temperature should not exceed 40℃ and the relative humidity should not exceed 95%.
